Version ACC 4xx Series
The compresser cooler series ACC 4xx offers precision, safety and long-term stability for extractive analytics. The very low gas dissolution rate is attained owing to the new cooler technology (Patents applied). Both the permanent separation of the condensate from the gas phase, as well as the shorter contact time of the gas in the system, plays important roles in reducing gas dissolution rates.

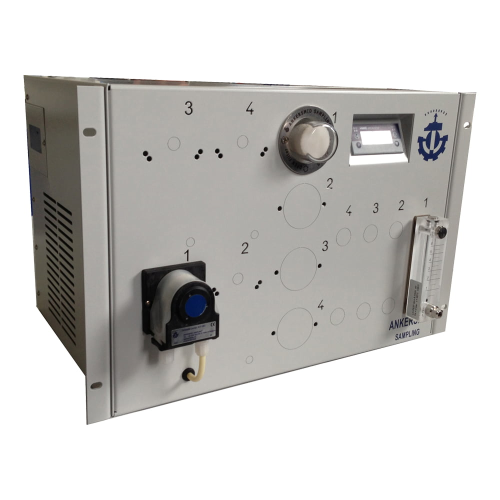

The new cooler incorporates an advanced structural design with housing suitable for both wall-mounting and 19“-racks. The coolers can be integrated into the analysis cabinet without empty space requirements at the side for a cooling air outlet.
Additional information
The unique design enables up to 4 heat exchangers and peristaltic pumps to be incorporated either at the factory or at a later time, without any problem. The exchangers and pumps can be connected in series or parallel following customer requirements.
Optional panel filter as well as flow meter and moisture alarm sensors can be integrated to the cooler front plate. All options as well as additional heat exchangers and condensate pumps can also be integrated after installation of the cooler, due to the modular design with pre-lasered cut-outs.
An electronic system not only monitors the dew-point, but also the ambient temperature. The integrated fan is cooling air temperature dependent controlled.
A temperature alarm output is wired to the terminal block incorporated in the cooler housing for a safe connection without disassembling the cooler.
Available for 230VAC and 115VAC power supply.
The ACC cooler is designed especially for:
- Power Plants
- Waste Incinerators
- Cement Manufacturing
- Chemical Production Plants
- Gas Production Plants
- Glass manufacturing
- Timber Processing
- Food Processing
Application
Ankersmid Compressor Coolers are used to lower the dew point of humid gas to avoid condensate entering into the gas analyser. This unique micro-processor controlled compressor cooler has been designed with a powerful dew-point stabiliser. The dew-point is set at 4°C but can be changed at any value between 1 and 15°C.
A good and stable gas dew-point avoids cross-interference if the analyser is sensitive to H2O.
