Application

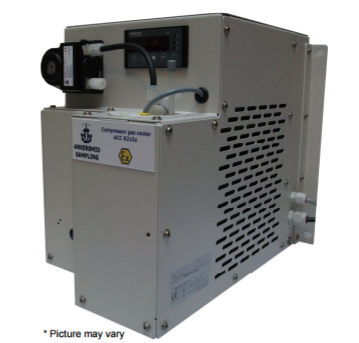

Ankersmid Compressor Coolers are used to lower the dew point ofhumid gas to avoid condensate entering into the gas analyser.This unique micro-processor controlled compressor cooler has been designed with a powerful dew point stabiliser. The dew pointis set at 3°C. A good and stable gas dew point avoids cross interferen ceil the analyser is sensitive to H2O.
Description
The cooler offers precision, safety and long-term stability for extractive analytics. The cooler incorporates a housing suitable for wall-mounting as standard. The design enables one heat exchanger (mono or dual gas path). The exchanger can be connected in series or parallel following customer requirements. An electronic system not only monitors the dew point, but also the ambient temperature. An isolated temperature alarm output for high and low temperature alarm is included as standard.
Available for 230VAC and 115VAC power supply.
- Provide clean dry sample gases to extractive analysers in continuous emission monitoring,process control and engine testing applications
- Cooler housing for wallmounting
- Optimise industrial burning processes
- Continuously dehumidify gas sample streams
- Environment-friendly (CFC free)
- Intended for use in Potentially Explosive Atmospheres
- According to Directive 94/9/EC
- For use in hazardous area Zone 2
Documentation
3.3 ACC Compressor Cooler Series 8xx Ex
